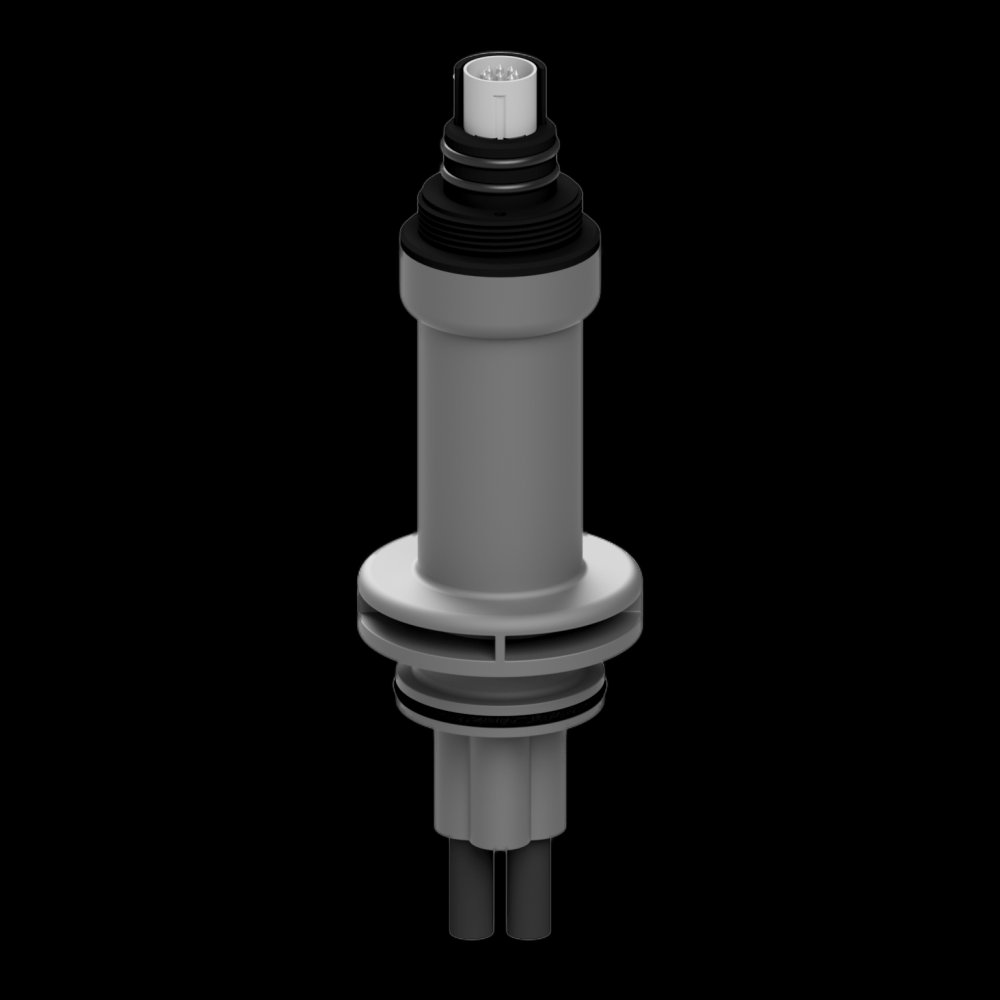

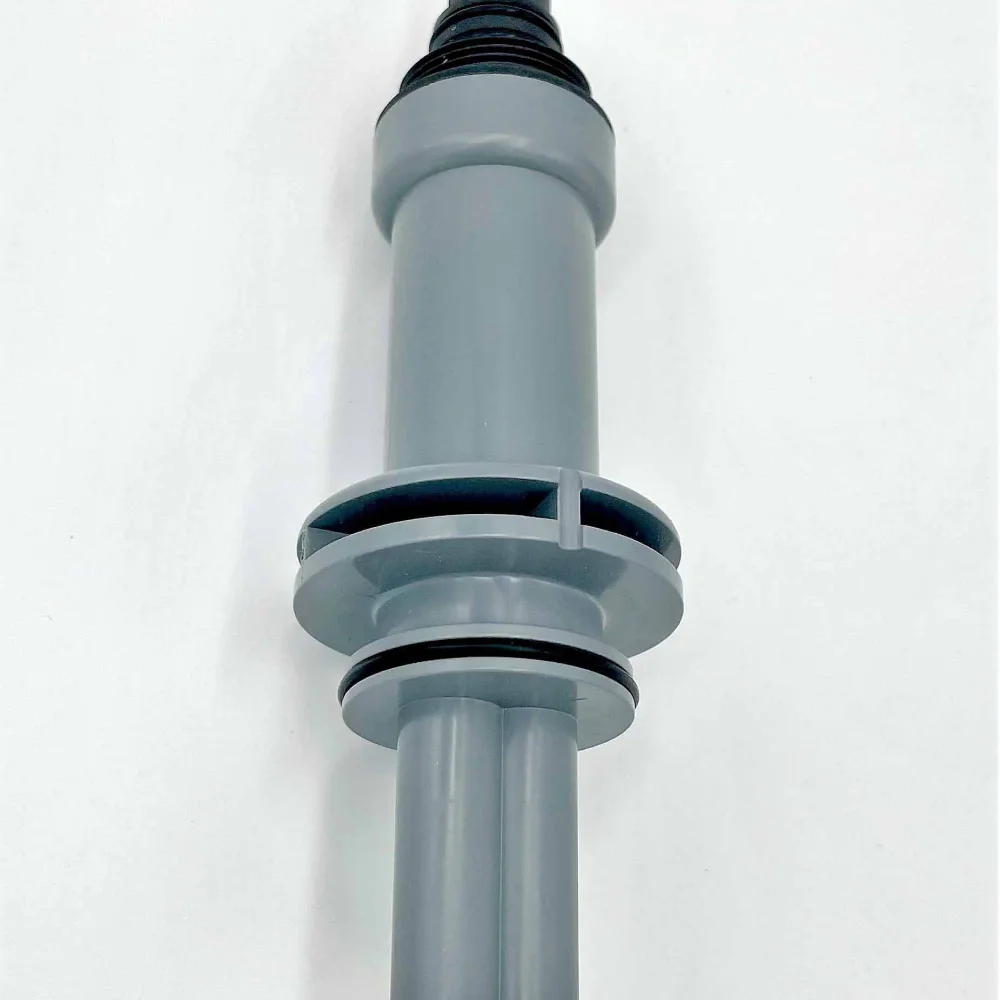

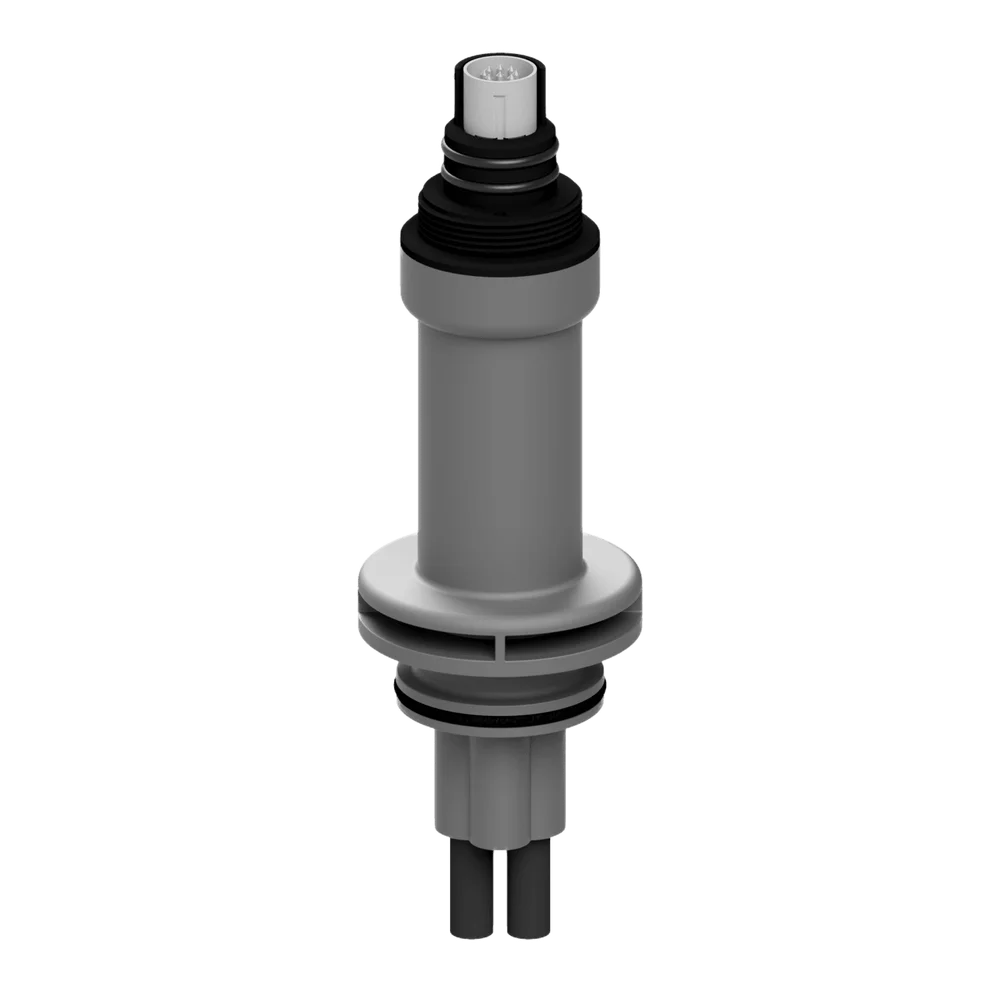

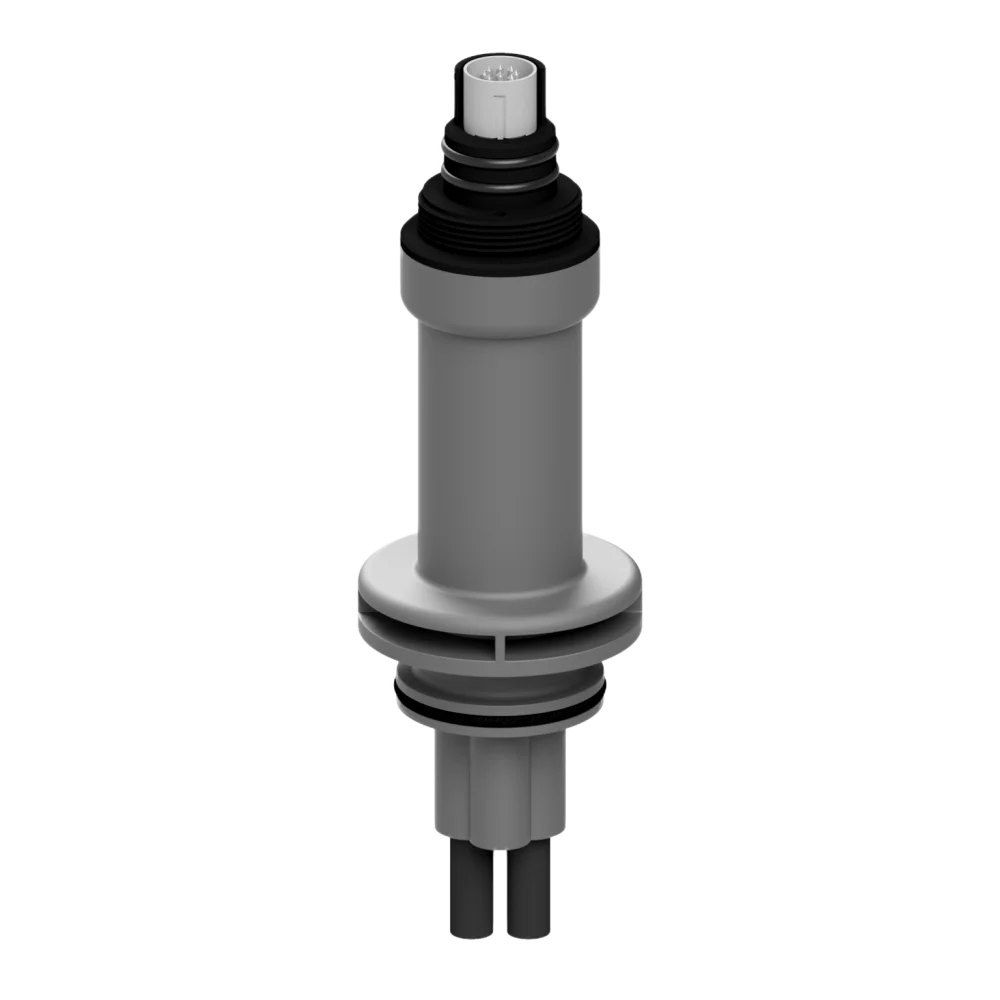

CS300 - Conductivity Sensor Cartridge For CS8000 Kits


CS300 - Conductivity Sensor Cartridge For CS8000 Kits

CS300-C-1-N-N-A
Ideal for Light Industrial Process Applications Keyed flange ensures proper orientation for best results Temperature compensation ensures optimal performance Reduce Maintenance Costs Quick-disconnect cable to allow for cables to remain in place Flat measurement surface resists coating Calibrations are even faster when used with Sensorex Electronic Modules Smart Sensor-Capable via Sensorex Electronic Modules (Sold Separately)  Purchase with EM805-EC Module – sold separately Use with S856 Cable (Option FC) USB Converter for Smart Sensors (S857 – sold separately ) recommended for calibration and set-up For first time installations, select appropriate cable length and purchase FC875/T Flow Cell separately (shown under accessories).
Cell Constant : C - 1.0/cm
Temperature Compensation : 1 - PT1000Ω RTD
Hurry up! Only 100 still articles in stock.
R$2,616
VAT included
Quantity

Sensorex’s CS300 Process Graphite Contacting Conductivity Sensor is designed for light industrial process applications (cooling towers).

  • Use with an S855 cable assembly for quick disconnect helping reduce maintenance time in conventional conductivity applications using transmitters.
  • Use with the EM805-EC electronics module and the S856 cable to turn the CS300 into a smart sensor for use directly with SCADA systems.

CA Residents: Prop 65 WARNING(S)

Read More


  • Cell Constants: available in k=1.0 and k=0.1

    Temperature Range: 0-60⁰ C

    Pressure Range: 0 – 100 PSIG

    Body Construction: CPVC, Graphite, Viton®

    Warranty: One year limited warranty


CS300 Instructions
DOWNLOAD
CS300 Specifications
DOWNLOAD
SENSOREX SMART SENSORS BROCHURE
DOWNLOAD

Weight0.00 lbs
DimensionsN/A
Cell ConstantB - 0.1/cm, C - 1.0/cm
Temperature Compensation1 - PT1000Ω RTD, 3 - 10K Thermistor

Ideal for Light Industrial Process Applications

  • Keyed flange ensures proper orientation for best results
  • Temperature compensation ensures optimal performance

Reduce Maintenance Costs

  • Quick-disconnect cable to allow for cables to remain in place
  • Flat measurement surface resists coating
  • Calibrations are even faster when used with Sensorex Electronic Modules

Smart Sensor-Capable via Sensorex Electronic Modules (Sold Separately)

  • Purchase with EM805-EC Module – sold separately
  • Use with S856 Cable (Option FC)
  • USB Converter for Smart Sensors (S857 – sold separately) recommended for calibration and set-up

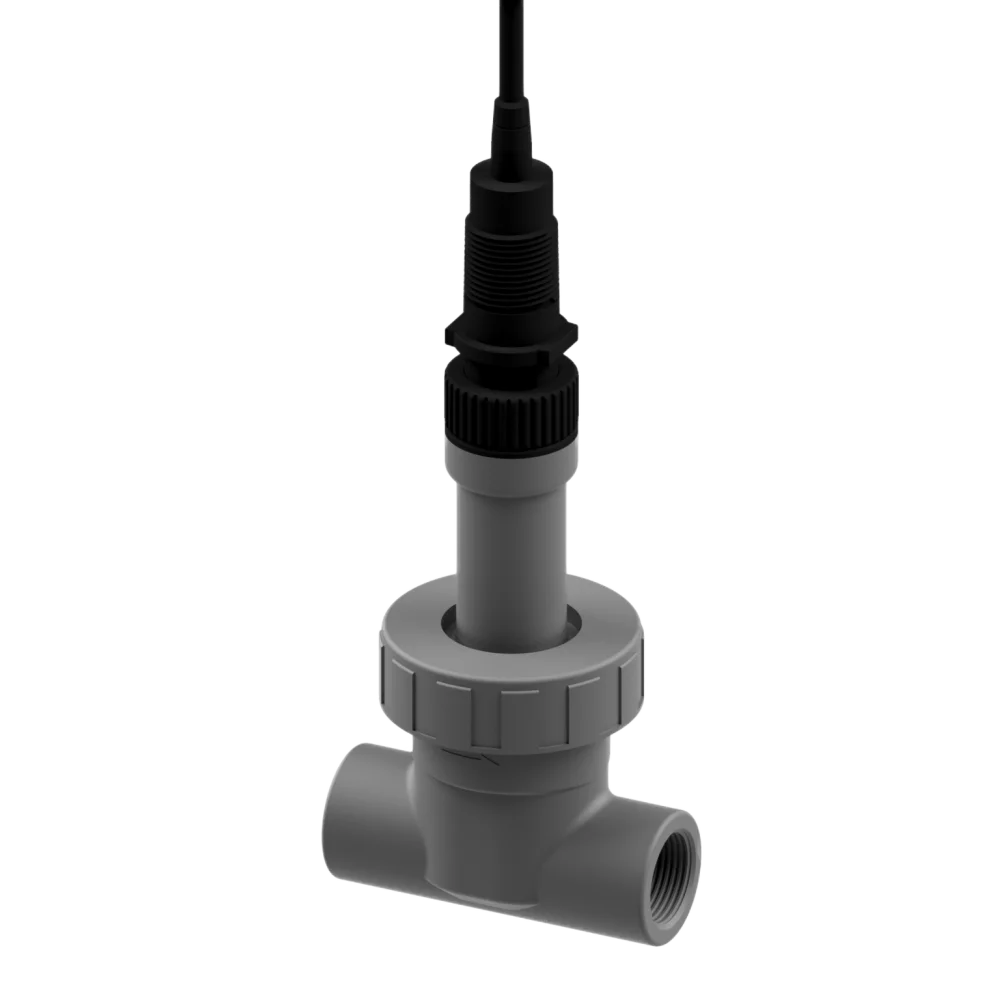

For first time installations, select appropriate cable length and purchase FC875/T Flow Cell separately (shown under accessories).

: CS300-C-1-N-N-A
Hurry up! Only 100 still articles in stock.

Data sheet

Dimensions
N/A
Applications
Conductivity, Food And Beverage, S8000 Modular Sensor System, S8000 Smart Modular Sensor System, Smart Sensors
Warranty
One year limited warranty
Pressure Range
0 - 100 PSIG
Body Construction
CPVC, Graphite, Viton®
Cell Constants
available in k=1.0 and k=0.1
Temperature Range
0-60⁰ C
Temperature Compensation
1 - PT1000Ω RTD, 3 - 10K Thermistor
Cell Constant
B - 0.1/cm, C - 1.0/cm
Weight
0.00 lbs
