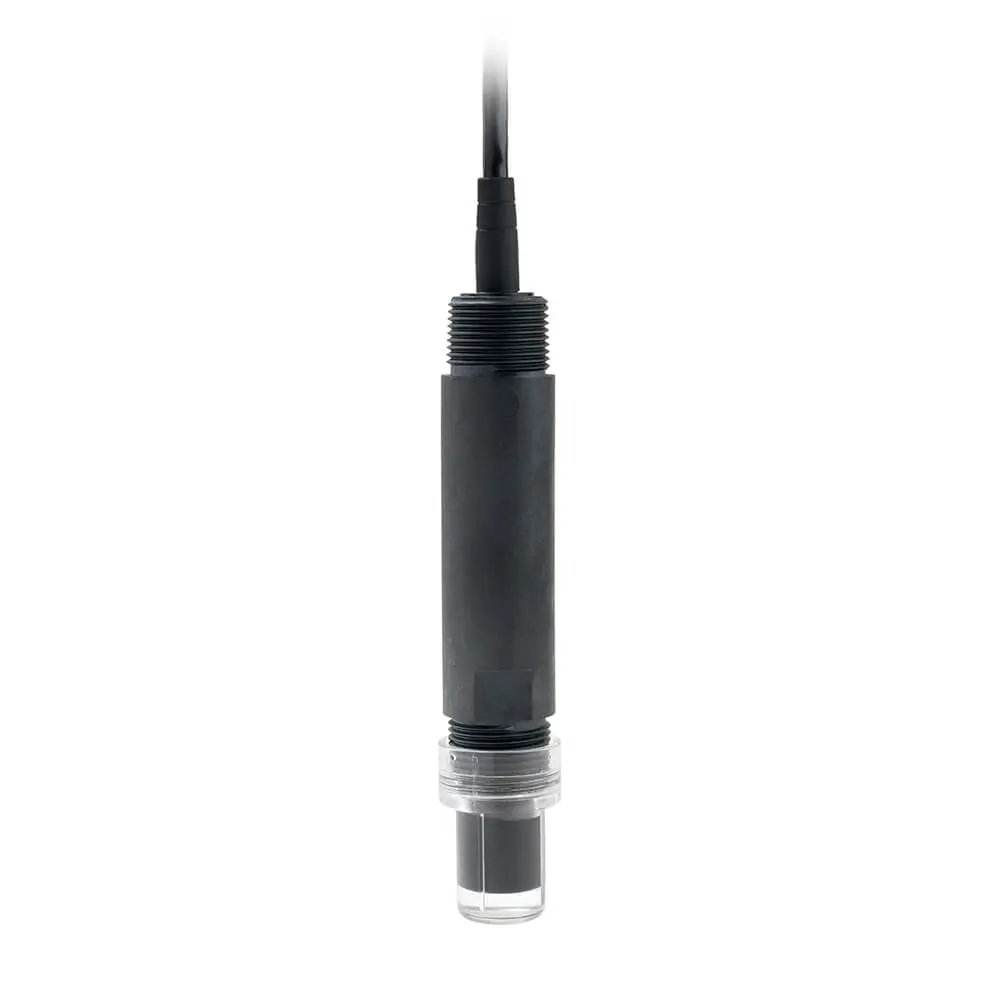

S272CD-MA y S272CD-MB - Sensor de pH inteligente con comunicación digital


S272CD-MA and S272CD-MB - Smart pH Sensor with Digital Communication

S272CDTC-MB/P1K/10/TL/TL
Choose 4-20mA or MODBUS/RS485 Interface Our S272 series of pH sensors deliver reliable online pH monitoring for in-line or submersion installation configuration. Extended sensor lifetime with double-junction technology. Minimal maintenance required due to flat glass measurement surface. A versatile sensor for moderate and multi-purpose applications. Reliable performance in demanding applications Extended sensor lifetime Optional 4-20mA or MODBUS/RS485 output Input Voltage: 24V DC Versatile design for submersion or in-line mounting One year limited warranty
Interface : Modbus
¡Apúrense! 100 aún hay artículos en stock.
5.902 R$
Impuestos incluidos
Cantidad

The S272CD online process pH sensor delivers reliable online monitoring for in-line or submersion installation configuration. This sensor is designed to extend sensor lifetime with double-junction technology. Minimal maintenance required due to flat glass measurement surface. A versatile sensor for moderate and multi-purpose applications.

  • Reliable performance in demanding applications: Liquid flow naturally cleans the flat pH measurement surface
  • Extended sensor lifetime: Double junction technology extends sensor lifetime by preventing reference contamination
  • Output Options include: Millivolt, 4-20mA or MODBUS/RS485 output
  • Input Voltage Options: 24V DC
  • Versatile design for many applications: 3/4″ NPT threads on both ends for submersion or in-line mounting
  • One year limited warranty: We stand behind all our products with the Sensorex Guarantee

CA Residents: Prop 65 WARNING(S)

For optimal shelf life, store sensors at 15-30°C.

Read More


  • Measurement Range: 0-14 pH (NA+ ion error >12.3pH)

    Temperature Range: 0-100⁰ C

    Pressure Range: 0 – 100 PSIG

    Body Construction: Ryton Polyphenylene Sulfide (PPS)

    Response Time: 95% in 1 second

    Isopotential: 7.00 pH

    Process Connection: 3/4″ MNPT for submersion or in-line

    Input Voltage Options:

    • 12V DC – MODBUS only
    • 24V DC – 4-20mA & MODBUS

    Connector: BNC or Tinned Leads

    Cable Length: 10 feet (3 meters)

    Warranty: One year limited warranty


S260 and S270 Series Instructions
DOWNLOAD
Sensorex Smart Sensor Modbus User Instruction Rev 1.3
DOWNLOAD
S272 Specifications
DOWNLOAD
Smart Sensor Software
DOWNLOAD
Smart Sensor User Interface Advanced A Instructions
DOWNLOAD
SENSOREX SMART SENSORS BROCHURE
DOWNLOAD

Weight0.50 lbs
Dimensions8.25 × 2.25 × 2.25 in

Choose 4-20mA or MODBUS/RS485 Interface

Our S272 series of pH sensors deliver reliable online pH monitoring for in-line or submersion installation configuration. Extended sensor lifetime with double-junction technology. Minimal maintenance required due to flat glass measurement surface. A versatile sensor for moderate and multi-purpose applications.

  • Reliable performance in demanding applications
  • Extended sensor lifetime
  • Optional 4-20mA or MODBUS/RS485 output
  • Input Voltage: 24V DC
  • Versatile design for submersion or in-line mounting
  • One year limited warranty
: S272CDTC-MB/P1K/10/TL/TL
¡Apúrense! 100 aún hay artículos en stock.

Ficha técnica

Dimensiones
8.25 x 2.25 x 2.25 in
Aplicaciones
pH, sensores inteligentes
Conexión de proceso
3/4″ MNPT para inmersión o instalación en línea
Rango de medición
0-14 pH (error del ión NA+ >12.3pH)
Isopotencial
7.00 pH
Garantía
Garantía limitada de un año
Rango de presión
0 - 100 PSIG
Construcción de la carcasa
Ryton sulfuro de polifenileno (PPS)
Longitud del cable
10 pies (3 metros)
Rango de temperatura
0–100 °C
Conector
BNC o cables estañados
Peso
0.50 lbs
Tiempo de respuesta
95% en 1 segundo
