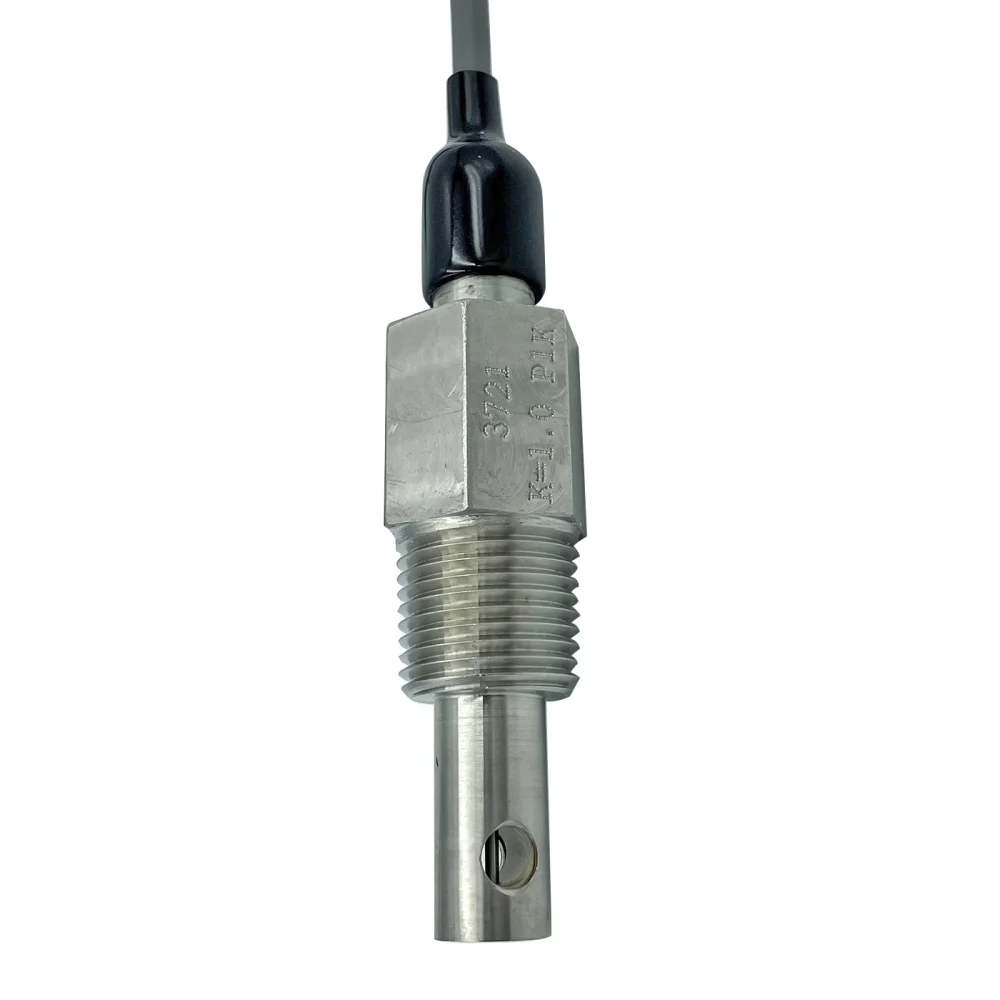

CS650 - Conductivity Sensor, Stainless Steel

CS650 - Conductivity Sensor, Stainless Steel

CS650-C-1-BC-3-A
General-Purpose Sensor for Use in a Variety of Applications Cooling Towers Demin Influent Robust Single-Body Design 1/2” NPT Stainless Steel Hexagonal body shape for ease of installation
Cable Termination Connector : 3 - Cables estañados
Cell Constant : C - 1.0/cm
Temperature Compensation : 1 - PT1000 RTD
Cable Length : BC - 10-ft Cable (3 meters), Standard 4-wire
¡Apúrense! 100 aún hay artículos en stock.
4.430 R$
Impuestos incluidos
Cantidad

The Sensorex CS650 Stainless Steel Conductivity Sensor is a general purpose sensor to be used in a variety of benign applications (cooling towers, dimineralizer influent, etc). It features a robust single body design made of 316 stainless steel. It has a hexagonal body and 1/2″ NPT connection for ease of installation.

Read More


  • Temperature & Pressure Rating: 100° C (212° F) & 100 psig

    Temperature Compensation: See ordering matrix in product specification sheet

    Wetted Materials: 316 Stainless Steel, PEEK

    Cell Constants: 0.1/cm and 1.0 cm/cm


CS650 Instructions
DOWNLOAD
CS650 Specifications
DOWNLOAD

Weight0.50 lbs
Dimensions5 × 3 × 3 in
Cell ConstantB - 0.1/cm, C - 1.0/cm
Temperature CompensationN - No Selection, 1 - PT1000 RTD
Cable LengthAC - 10-ft (3 meters), Standard 2-wire, BC - 10-ft Cable (3 meters), Standard 4-wire
Cable Termination Connector3 - Tinned Leads

General-Purpose Sensor for Use in a Variety of Applications

  • Cooling Towers
  • Demin Influent

Robust Single-Body Design

  • 1/2” NPT Stainless Steel
  • Hexagonal body shape for ease of installation
: CS650-C-1-BC-3-A
¡Apúrense! 100 aún hay artículos en stock.

Ficha técnica

Dimensiones
5 x 3 x 3 in
Aplicaciones
Conductividad, sensores en línea
Constantes de celdas
0.1/cm and 1.0 cm/cm
Materiales en contacto con el fluido
316 Stainless Steel, PEEK
Temperature & Pressure Rating
100° C (212° F) & 100 psig
Longitud del cable
AC - 10-ft (3 meters), Standard 2-wire, BC - 10-ft Cable (3 meters), Standard 4-wire
Compensación de temperatura
N - Sin selección, 1 - PT1000 RTD
See ordering matrix in product specification sheet
Constante de celda
B - 0.1/cm, C - 1.0/cm
Conector de terminación de cable
3 - Tinned Leads
Peso
0,50 lbs
