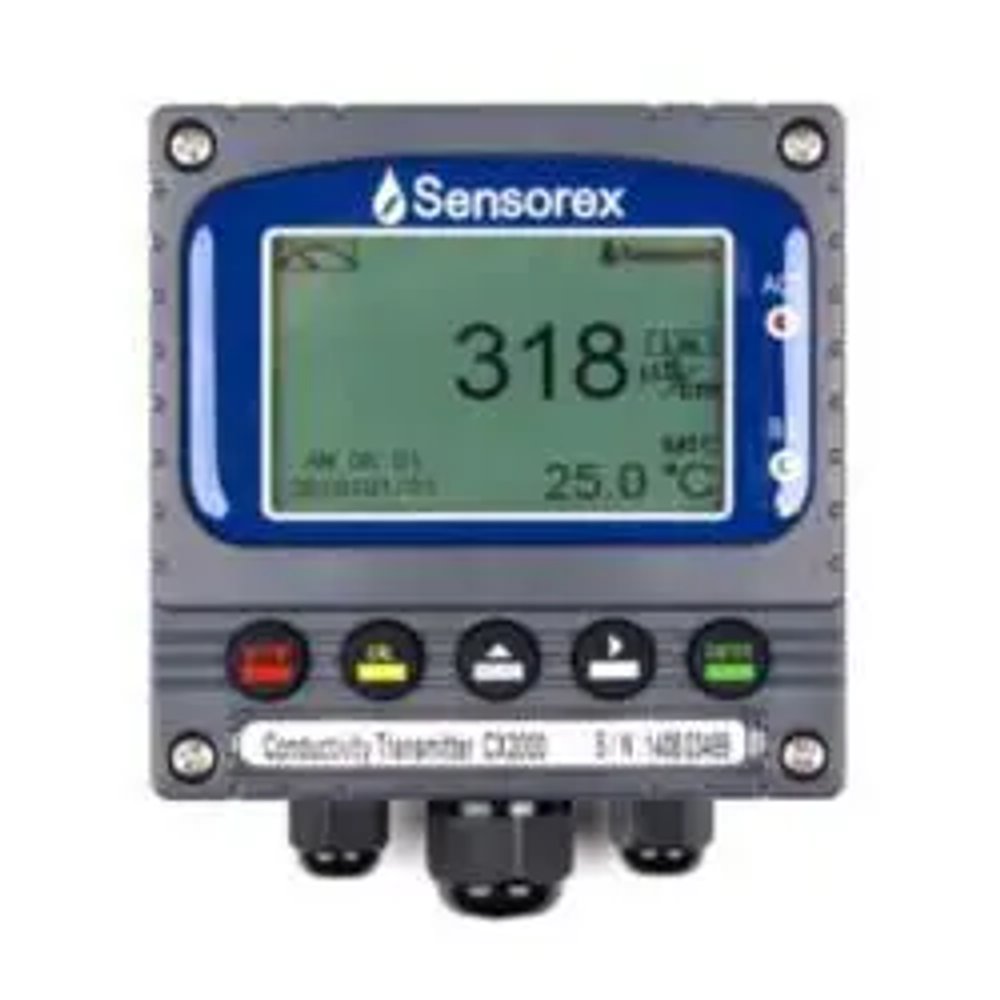

CX2000 - Transmisor/controlador de conductividad

CX2000 - Conductivity Transmitter/Controller

CX2000 (Standard)
Our CX2000 is a fully-featured conductivity controller and 4-20mA transmitter for reading contacting conductivity sensors and programming process control. Set points are easily selected for 2 relay outputs and 1 wash control. Sensor calibration is simple with preset standards. The large LCD display features auto-sense back-light technology for use in all environments, including cooling tower controller applications. Reliable process control Lightning fast sensor calibration Perfect for use in all environments Compatible with a wide variety of sensors One year limited warranty Note: Transmitter is only compatible with sensors with tinned leads and either 30k NTC or Pt1000Ω RTD temperature compensation.
Select Outputs : 2x 4-20mA
¡Apúrense! 100 aún hay artículos en stock.
1.608 R$
Impuestos incluidos
Cantidad

Our CX2000 is a fully-featured conductivity controller and 4-20mA transmitter for reading contacting conductivity sensors and programming process control. Set points are easily selected for 2 relay outputs and 1 wash control. Sensor calibration is simple with preset standards. The large LCD display features auto-sense back-light technology for use in all environments, including cooling tower controller applications.

  • Reliable process control: Two (2) adjustable Hi/Lo relay contacts
  • Lightning fast sensor calibration: Preset standards make sensor calibration quick and simple
  • Perfect for use in all environments: LCD display with auto-sense backlight technology & NEMA 4X, IP65 enclosure
  • Compatible with a wide variety of sensors: For use with all Sensorex contacting conductivity sensors
  • One year limited warranty: We stand behind all our products with the Sensorex Guarantee

Note: CX2000 Conductivity Controller and 4-20mA transmitter is compatible with sensors with tinned lead connectors and either 30k NTC or Pt1000Ω RTD temperature compensation.

CA Residents: Prop 65 WARNING(S)

Read More


  • Measuring Range:

    • Conductivity: 0.000 uS/cm -200.0 mS/cm in 5 ranges, 0.01/.01/1 uS/cm, 0.01/0.1mS/cm resolution, +/-1% Accuracy (+/- 1 digit)
    • Resistivity 0.00-20.00 MΩ • cm, 0.01 MΩ • cm resolution, +/-1% Accuracy(+/- 1 digit)
    • Temperature Range: -30 °C to 130 °C, 0.1 °C resolution, 0.2 °C accuracy

    Calibration Mode: Automatic with built-in standard solutions manual cell constant adjustment
    Cell Constants: 0.01, 0.05, 0.1, 0.5, 10/cm fixed or freely selectable 0.0080 – 19.99/cm
    Analog Output 1: Isolated DC 0/4 -20mA, corresponding to conductivity or resistivity. Max load 500 Ω.
    Analog Output 2: Isolated DC 0/4 -20mA, corresponding to temperature output. Max load 500 Ω.
    Set-Points: Contact: 240V AC, 5A max
    Activate: setpoints Hi/Low, Hi/Hi, Low/Low, ON/OFF
    Enclosure: NEMA 4X IP65, with push-button control pad. HWD: 96 mm (3.77”) x 132 mm (5.20”), 1/4 DIN
    Panel Cut-Out: 93mm (3.66”) x 93mm (3.66”)
    Weight: approx. 0.50kg (1.1lb)
    Mounting Options: Panel or Wall Mount
    Ambient Temperature: 0 ° C to 50 ° C
    Storage Temperature: -10 ° C to 70 ° C
    Temperature Compensation: NTC 30K or Pt1000 RTD with automatic compensation or manual
    Temperature Coefficient: Linear comp 0.00-40.00%, Non-linear comp for natural waters
    Power Requirement: 100-240V AC +/- 10%, 5W max, 50/60 H


Instructions CX2000
DOWNLOAD
CX2000 Specifications
DOWNLOAD

Weight2.40 lbs
Dimensions11 × 10.5 × 7 in
Select Outputs2x 4-20mA, 1x 4-20mA + 1x MODBUS

Our CX2000 is a fully-featured conductivity controller and 4-20mA transmitter for reading contacting conductivity sensors and programming process control. Set points are easily selected for 2 relay outputs and 1 wash control. Sensor calibration is simple with preset standards. The large LCD display features auto-sense back-light technology for use in all environments, including cooling tower controller applications.

  • Reliable process control
  • Lightning fast sensor calibration
  • Perfect for use in all environments
  • Compatible with a wide variety of sensors
  • One year limited warranty

Note: Transmitter is only compatible with sensors with tinned leads and either 30k NTC or Pt1000Ω RTD temperature compensation.

: CX2000 (Standard)
¡Apúrense! 100 aún hay artículos en stock.

Ficha técnica

Dimensiones
11 x 10.5 x 7 in
Aplicaciones
Conductividad, controladores y transmisores, hidroponía y agricultura
Requisitos de alimentación
100-240V AC +/- 10%, 5W max, 50/60 H
Constantes de celdas
0.01, 0.05, 0.1, 0.5, 10/cm fijos o seleccionables libremente 0.0080 - 19.99/cm
Carcasa
NEMA 4X IP65, con panel de control de botones
Modo de calibración
Automático con soluciones estándar integradas, ajuste manual de la constante de la celda
Recorte en el panel
93mm (3.66") x 93mm (3.66")
Salida analógica 1
Salida DC aislada 0/4 -20mA, correspondiente a conductividad o resistividad. Carga máxima 500 Ω.
Salida analógica 2
Salida CC aislada 0/4 -20mA, correspondiente a la salida de temperatura. Carga máxima 500 Ω.
Contacto
240V CA, 5A max
Opciones de montaje
Montaje en panel o en pared
Coeficiente de temperatura
Lineal comp 0.00-40.00%, No lineal comp para aguas naturales
H WD
96 mm (3.77\") x 132 mm (5.20\"), 1/4 DIN
Activar
Puntos de consigna Alto/Bajo, Alto/Alto, Bajo/Bajo, Encendido/Apagado
Temperatura ambiente
0 °C a 50 °C
Temperatura de almacenamiento
de -10 °C a 70 °C
Compensación de temperatura
NTC 30K o Pt1000 RTD con compensación automática o manual
Seleccionar salidas
2x 4-20mA, 1x 4-20mA + 1x MODBUS
Peso
2.40 lbs
aprox. 0.50kg (1.1lb)
