CS200 - Sensor de conductividad de contacto, 12 mm, platino

CS200 - Contacting Conductivity Sensor, 12 mm Platinum

CS200-D-N-AB-2-A-N
Ideal for Laboratory or Light Industrial Process Applications Submersible in tank or mounted inline Made of rugged epoxy body Accurate Measurements Select from three cell constants based on your measurement range Use temperature compensation for best performance Compatible with Most Portable & Benchtop Meters CA Residents :  Prop 65 WARNING(S) *Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics
Cable Termination Connector : 2 - Conector BNC
Cell Constant : D - 10/cm
Installation Fitting Type : N - Sin selección
Temperature Compensation : N - Sin selección
Cable Length : AB - 3-ft cable (1 metro), cable de 2 conductores
¡Apúrense! 100 aún hay artículos en stock.
2.015 R$
Impuestos incluidos
Cantidad

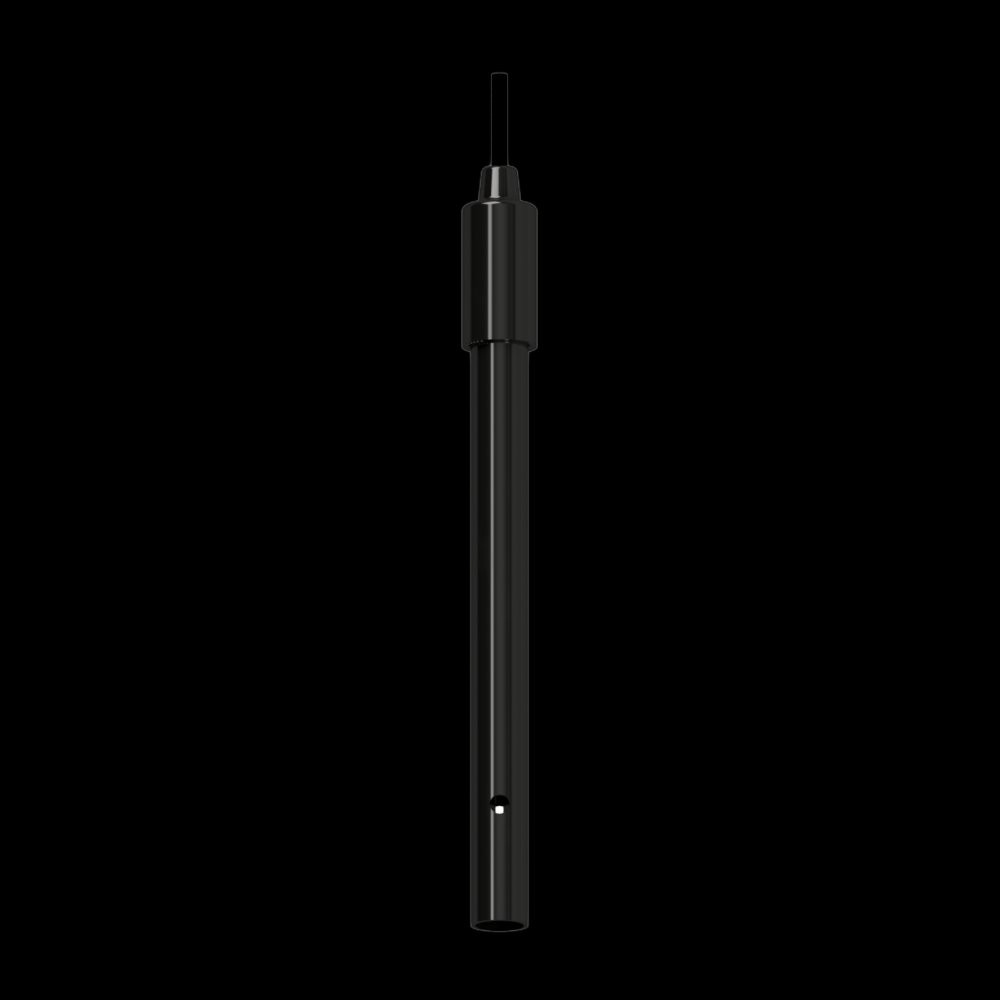

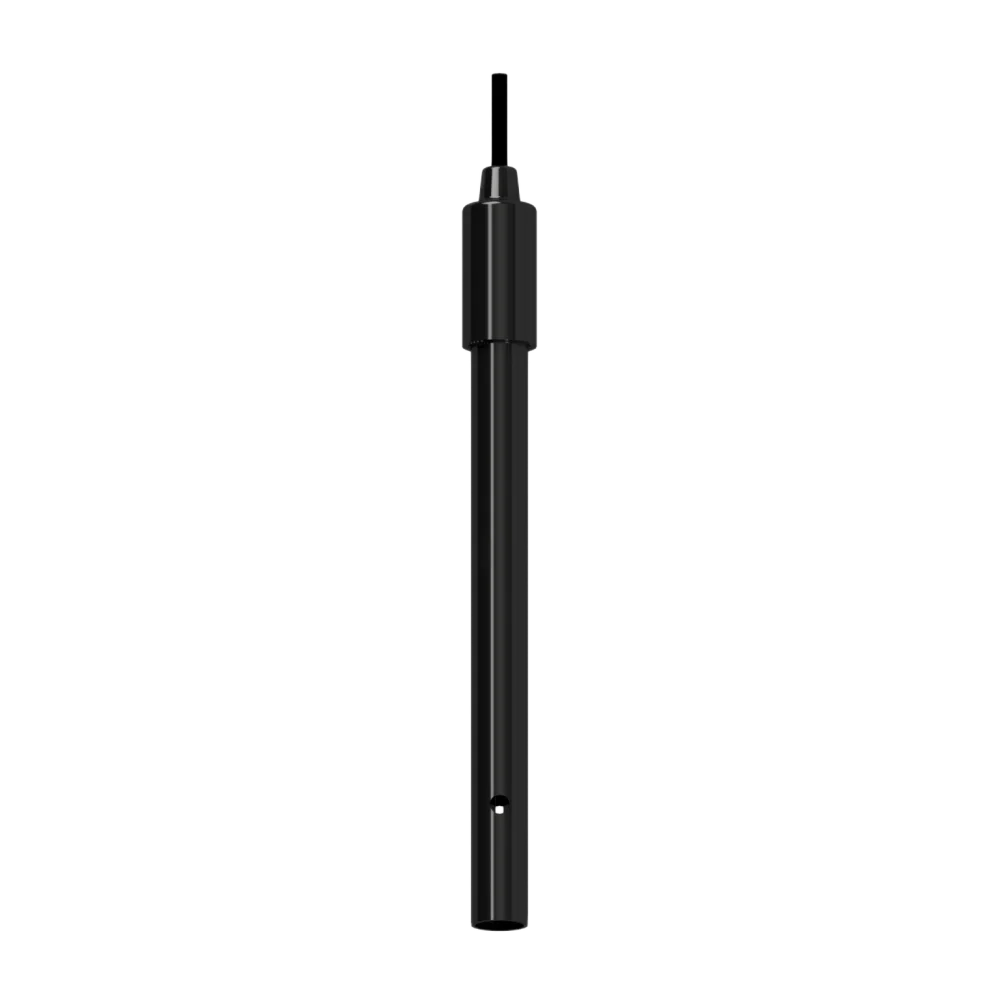

The CS200 12 mm Platinum Contacting Sensor is ideally suited for laboratory or light industrial process applications. It can be submerged in a tank or mounted inline. It is made of a rugged epoxy body, glass, and black coated platinum. For best performance, we recommend the selection of an appropriate cell constant for your measurement range and a temperature compensation option to match your instrument. This sensor is compatible with most portable and benchtop meters. For more information, see the product specification sheet.

Read More


  • Temperature /Pressure Rating: 0 – 70° C (32 – 158° F)/7.5 bar

    Temperature Compensation: Pt1000 or 10K NTC (See ordering information for more details)

    Wetted Materials: Epoxy

    Measuring Surface: Black Coated Platinum

    Cell Constants:

    • 0.1/cm
    • 1/cm
    • 10/cm

    See ordering information in product specification sheet for more details.


CS200 Instructions
DOWNLOAD
CS200 Specifications
DOWNLOAD

Weight0.23 lbs
Dimensions5.7 × 2 × 2 in
Cell ConstantB - 0.1/cm, C - 1.0/cm, D - 10/cm
Temperature CompensationN - No Selection, 1 - PT1000 RTD
Cable LengthAB - 3-ft Cable (1 meter), 2 Wire Cable, BC - 10-ft Cable (3 meters), Standard 4 Wire Cable
Cable Termination Connector2 - BNC Connector, 3 - Tinned Leads
Installation/Fitting TypeN - No Selection

Ideal for Laboratory or Light Industrial Process Applications

  • Submersible in tank or mounted inline
  • Made of rugged epoxy body

Accurate Measurements

  • Select from three cell constants based on your measurement range
  • Use temperature compensation for best performance

Compatible with Most Portable & Benchtop Meters

CA Residents: Prop 65 WARNING(S)

*Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics

: CS200-D-N-AB-2-A-N
¡Apúrense! 100 aún hay artículos en stock.

Ficha técnica

Dimensiones
5.7 x 2 x 2 in
Aplicaciones
Conductividad, Sensores de laboratorio, Sensores en línea
Materiales en contacto con el fluido
Epoxi
Clasificación de temperatura/presión
0 - 70° C (32 - 158° F)/7.5 bar
Superficie de medición
Platino recubierto en negro
Longitud del cable
AB - cable 3-ft (1 metro), cable de 2 hilos, BC - cable 10-ft (3 metros), cable estándar de 4 hilos
Compensación de temperatura
N - Sin selección, 1 - PT1000 RTD
Pt1000 o 10K NTC (consulte la información de pedido para más detalles)
Constante de celda
B - 0.1/cm, C - 1.0/cm, D - 10/cm
Conector de terminación de cable
2 - conector BNC, 3 - conductores estañados
Tipo de instalación/montaje
N - Sin selección
Peso
0.23 lbs
